Technology Platforms
Three core technology pillars underpin every LogiCore product — each validated through rigorous IEC type testing and field deployment data.
Multi-Task Real-Time Engine
Our PLC platform executes cyclic, event-driven, and freerun tasks concurrently with deterministic cycle times from 0.5ms. IEC 61131-3 compliant programming (ST, LD, FBD, SFC, IL) ensures portability and maintainability across engineering teams.
| Parameter | Value |
|---|---|
| Min. Cycle Time | 0.5 ms |
| Digital I/O Points | Up to 2,048 |
| Program Memory | 8 MB |
| Languages | ST, LD, FBD, SFC, IL |
Sensorless Vector Control
Our VFD control algorithm achieves 150% rated torque at zero speed without encoder feedback. The auto-tuning routine measures stator resistance, inductance, and flux constants in under 30 seconds — reducing commissioning time by 60% compared to manual parameter entry.
| Parameter | Value |
|---|---|
| Torque at 0 Hz | 150% rated |
| Speed Accuracy | ±0.2% (sensorless) |
| THD | <5% |
| Auto-Tune Time | <30 seconds |
Open Protocol Architecture
Native support for Modbus RTU/TCP, PROFINET, EtherCAT, and CANopen on all product lines. Our IEC 61850 gateway module enables direct integration with substation SCADA systems without external protocol converters.
| Protocol | Standard |
|---|---|
| Modbus RTU/TCP | Master + Slave |
| PROFINET | IO-Device V2.3 |
| EtherCAT | CoE, FoE |
| IEC 61850 | MMS, GOOSE |
Validated Under Real Operating Conditions

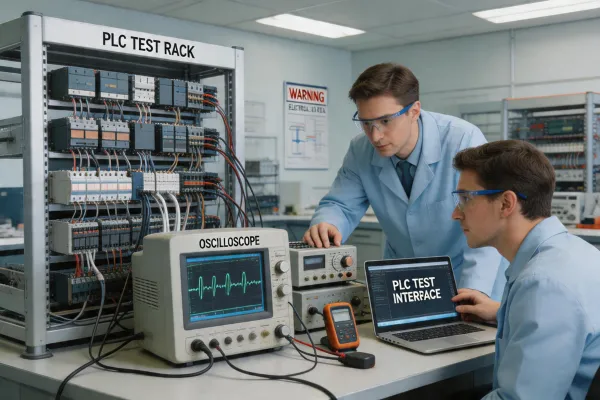

Every LogiCore product undergoes a comprehensive type-test program that goes beyond minimum IEC requirements. Our in-house EMC chamber, thermal cycling oven (-40 to +70 degrees Celsius), and vibration test bench validate performance under the conditions your installations actually face.
We publish full test reports — not summaries — with every product shipment, including waveform captures, temperature rise data, and immunity test results per IEC 61000-4 series. This level of transparency enables your engineering team to validate our specifications against your project requirements without additional third-party testing.
Download Technical White Paper
